Diagonal Foundation Cracks: Causes, Repairs & Why Long Island Homes Are Vulnerable

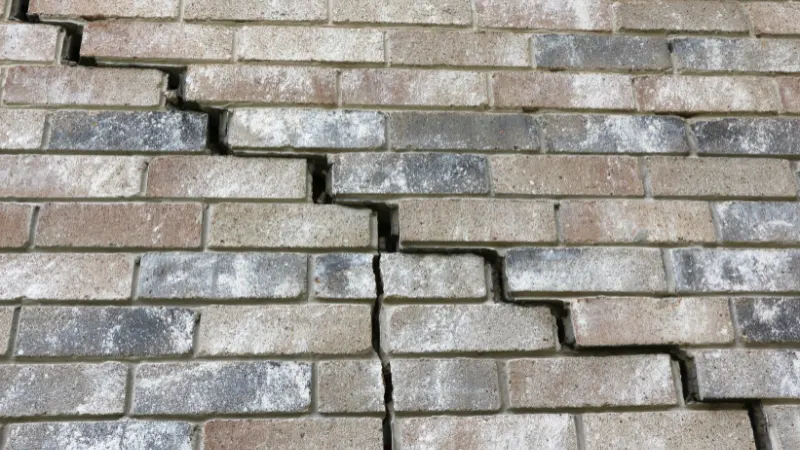

Diagonal foundation cracks are exactly what they sound like cracks that run across your wall or slab at an angle, usually somewhere between 30° and 75° from horizontal. Unlike vertical cracks, which go straight up and down, or horizontal cracks, which run side to side, diagonal cracks slice across the surface. One end of the crack is often wider than the other, a tell-tale sign of differential settling where one part of the foundation shifts more than the rest.
At first, diagonal cracks may look like harmless hairlines in new concrete, but they can widen over time as movement continues. They often show up near the corners of windows, doors, or mid-wall areas where stress concentrates. While not every diagonal crack is immediately dangerous, they’re not something to brush off. Left unchecked, they can signal foundation settlement, soil pressure issues, or water problems that will only grow more expensive to fix.
Don’t Let Cracks in Your Basement or Foundation Walls Get You Down! Zavza Seal Offers Free Expert Inspections!
Causes of Diagonal Foundation Cracks
So, what’s behind those jagged lines creeping across your foundation? In most cases, diagonal foundation cracks are caused by differential settlement. One side of your home sinks more than the other because the soil underneath isn’t offering uniform support. This uneven pressure twists the foundation and leaves cracks running on an angle.
But settlement isn’t the only culprit. Other common causes include:
- Uneven Soil or Poor Compaction: Homes built on sloped lots or improperly compacted soil are more likely to shift.
- Expanding and Contracting Soil: Clay soils swell when wet and shrink when dry, stressing your foundation in the process.
- Moisture Problems: Poor drainage, clogged gutters, or a high water table can soften soil and trigger foundation shifting.
- Freeze–Thaw Cycles: In colder climates, water in the soil freezes and expands, then thaws and contracts, cycling stress into the concrete.
- Tree Roots: Large trees planted too close can dry out soil or physically press against the foundation.
- Construction Issues: New concrete may show harmless diagonal hairlines simply from curing and shrinkage; these should be monitored but are usually not structural.
Ultimately, diagonal cracks are a symptom. They’re your foundation’s way of saying something in the soil, water, or structure itself is out of balance. And while some are low-risk, many point to ongoing foundation settlement that can get worse over time.
If water, trees, or poor grading are causing diagonal cracks to form, check your drainage and landscaping. For persistent cracks or signs of settling, contact a foundation specialist for an evaluation.
Case Study: Structural Crack and Tunnel Ceiling Repair in South Setauket, NY
- Client Location: South Setauket, NY
- Category: Structural Repair, Waterproofing
- Contractor: Zavza Seal LLC

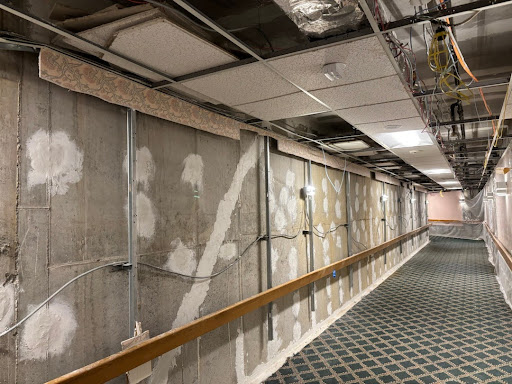

Zavza Seal LLC was called to a residential property in South Setauket after the owner noticed multiple structural issues most visibly a diagonal foundation crack (see bottom image) and failing steel plates in a tunnel ceiling. Water seepage was present, and the homeowner needed a trusted waterproofing contractor in South Setauket to resolve everything safely and quickly.
We began by repairing the diagonal crack, prepping the surface and applying two layers of 7,000 PSI waterproofing cement, reinforced with fiberglass mesh. For larger vertical cracks, we installed carbon fiber stitches rated to support 6,500 lbs and injected epoxy and urethane to fully seal and waterproof the damaged areas.
The tunnel ceiling had two steel plates that were rusting and unsafe. We installed temporary shoring, removed the corroded steel, and replaced it with custom-fabricated, galvanized plates, bonded and bolted in place. All materials were sealed using Basecrete and high-performance adhesives to prevent future moisture issues.
The result? A watertight, reinforced foundation and a fully restored tunnel ceiling. The client now has peace of mind knowing their home is structurally sound and protected against future water damage.
If you’re searching for foundation crack repair in South Setauket or tunnel ceiling repair on Long Island, Zavza Seal LLC delivers expert results backed by decades of experience.
Call (631) 980-1800 for a Free Inspection!
Signs and Severity of Diagonal Cracks
It’s normal for homeowners to feel uneasy the moment a crack appears across a basement wall or corner of a window frame. You’re not alone nearly 78% of homeowners say they worry about foundation damage according to NAR. The truth is, they have good reason. Most foundation damage won’t go away and will worsen as time goes on.
Here’s how to tell when to be concerned:
- Crack Width: Hairline cracks under 1/16 inch are often just cosmetic. Once a crack widens beyond 1/8 to 1/4 inch, it’s considered a foundation damage warning sign that shouldn’t be ignored.
- Direction and Origin: Diagonal cracks running from window or door corners often indicate structural stress. When they angle down toward the floor or across a wall, they usually trace the path of shifting soil forces.
- Growth Over Time: A crack that stretches longer or gets wider in just a few months is active and dangerous. Use pencil marks, date-stamped photos, or tape gauges to track growth.
- Related Symptoms: If doors or windows stick, if floors slope, or if gaps open around frames, your diagonal cracks are likely part of a bigger settlement problem threatening your structural integrity.
- Impact on Home Value: Ignoring severe cracks isn’t just a safety issue it’s a financial one. Studies show that visible foundation issues can reduce a home’s value by up to 30%.
Homeowners already stretched by stress don’t need more uncertainty. The bottom line: growing or wide diagonal cracks are a red flag.
Repairing Diagonal Foundation Cracks
If you’ve spotted foundation cracks in your home, don’t worry. Repairs exist for every severity level. Some fixes are simple, but lasting solutions almost always require a professional touch.
- Epoxy or Polyurethane Injections: For smaller diagonal cracks, contractors often use crack injection repair with epoxy or polyurethane. These methods seal the crack, stop water intrusion, and bond the concrete. Costs usually start around $300+ for a basic job.
- DIY Warning: Homeowners sometimes try chiseling or V-grooving and patching cracks themselves. These temporary patches often fail, since they don’t address the underlying soil or structural cause.
- Structural Stabilization: When cracks are large or tied to settlement, repairs shift from cosmetic to structural. Options include helical piers, push piers, underpinning, carbon fiber straps, or wall anchors to stabilize and reinforce the foundation. These solutions can cost thousands, with full pier systems running into the tens of thousands depending on severity.
- Addressing Root Causes: No repair lasts if the underlying issue isn’t fixed. Poor drainage, expanding clay soils, or erosion must be corrected whether that’s through improved grading, sump systems, or soil stabilization.
- Peace of Mind: While the price tag varies, most professional structural repairs come with transferable warranties. That means you’re not just buying a repair you’re protecting your family’s safety and your home’s resale value.
Don’t Settle for Guessing Games. Get a Free Quote From a Local Foundation Repair Specialist Today and Restore Confidence in Your Home’s Stability.
Preventing Diagonal Foundation Cracks
The best repair is the one you never need. While you can’t control every soil shift under your home, there are proven ways to reduce the risk of future cracks. Consistent foundation maintenance protects both your structure and your peace of mind.
Proactive steps homeowners can take:
- Manage Water Around the Foundation: Keep gutters clean, add downspout extensions, and ensure proper grading so water flows away from the house. Poor drainage is one of the biggest culprits behind foundation cracks.
- Stabilize Soil Moisture: Extreme swings between soaked and bone-dry soil cause expansion and contraction. Use consistent watering schedules during drought or install drainage solutions during wet periods to keep soil stable.
- Be Smart About Landscaping: Keep large plants and trees at a safe distance. Their root systems can dry out soil unevenly or push against the foundation.
- Maintain Waterproofing Systems: Regularly test sump pumps, inspect basement waterproofing, and repair leaks before they worsen. Good waterproofing is a frontline defense against shifting soil.
- Schedule Routine Inspections: A professional foundation inspection every few years can spot small issues before they become costly repairs. Think of it as a low-cost stress reliever that saves you thousands down the road.
Protecting your home starts with prevention. Contact us to schedule a foundation health check and avoid headaches later.
Diagonal Foundation Cracks in Long Island (NY)
For Long Island homeowners, understanding diagonal foundation cracks is especially crucial. The island’s soil and weather patterns create perfect conditions for foundation movement.
- Soil Mix: Much of Long Island sits on sandy-clay blends that shift easily when moisture levels change. These soils can’t always support uniform foundation loads, leading to cracks.
- High Water Table: Being close to sea level means groundwater sits just beneath the surface. Heavy rains, nor’easters, and storm surges raise the table further, saturating soil and eroding support around foundations.
- Freeze–Thaw Cycles: The Northeast climate subjects soil to freezing and thawing each year. As water expands into ice and then contracts again, foundations feel the stress.
- Older Housing Stock: Many Long Island homes are decades old, built with shallow footings and less robust foundation designs. Combine that with modern development altering drainage patterns, and uneven settlement is inevitable.
- Moisture Extremes: From summer humidity to winter storms, soil moisture swings create pressure that often shows up as diagonal cracks in basement or exterior walls.
In short: Long Island’s soil, water, and climate set the stage for uneven settlement. Without protection from all of these factors, your home is vulnerable and it’s just a waiting game until the next problem.
Why Choose Zavza Seal
Foundation cracks can feel overwhelming but you don’t have to navigate them alone. The most important decision isn’t just knowing when to call a professional it’s knowing who to call. That’s where Zavza Seal comes in.
Here’s why homeowners across Long Island trust Zavza Seal:
- Expert Evaluation: We know the key warning signs. Whether it’s widening diagonal cracks, multiple cracks forming at once, or horizontal cracks signaling soil settlement, our certified foundation specialists can identify the issue with precision.
- Comprehensive Inspections: Cracks wider than 1/8 inch (and especially those over 1/4 inch) shouldn’t be ignored. Our inspections uncover both the visible cracks and the hidden soil or water pressures behind them.
- Structural Integrity First: If you notice sloping floors, sticking windows and doors, or gaps around frames, Zavza Seal’s team moves fast to protect your home’s stability.
- Cost-Saving Prevention: Even small cracks can lead to thousands in repair costs if neglected. With Zavza Seal, early intervention means peace of mind and long-term savings.
- Local Knowledge, Proven Solutions: Our team knows Long Island’s unique soil, water table, and climate challenges and we tailor solutions that last.
Foundation issues are not fun to deal with, but the right help is only a call away. Choosing Zavza Seal means choosing expertise, reliability, and a commitment to protecting your home and family.
Diagonal Foundation Cracks: Final Thoughts
Diagonal foundation cracks are more than cosmetic; they’re a warning from your home that the ground beneath it is shifting. The key takeaway: most cracks can be repaired if caught early, but ignoring them can lead to escalating damage, higher costs, and even a 30% reduction in home value if left unresolved.
Foundation problems create stress, but with expert help, they don’t have to derail your life. Zavza Seal specializes in diagnosing and repairing diagonal foundation cracks with solutions backed by warranties and decades of expertise.
Stop Diagonal Cracks Before They Spread. Book Your Free Long Island Foundation Inspection With Zavza Seal Today.
