Commercial buildings lose more energy below ground than most owners realize. Basements, parking levels, and mechanical rooms constantly exchange heat with the surrounding soil through uninsulated concrete walls and slabs. This contact creates thermal bridging, allowing heat to escape in winter and moisture to condense on cold surfaces year-round. The result? Higher energy costs, uncomfortable interiors, and ideal conditions for mold, corrosion, and material degradation.
In Long Island’s mixed coastal climate, where temperature swings and groundwater are constant challenges, below-grade insulation isn’t optional — it’s a critical component of a durable, energy-efficient building envelope. At Zavza Seal, we specialize in integrated thermal and waterproofing systems that keep commercial foundations dry, insulated, and code-compliant. From parking structures to mechanical basements, our engineered insulation solutions help reduce energy loss, prevent condensation, and protect your investment from the ground up.
Request a Professional Building Envelope Evaluation Today!
Why Below-Grade Insulation Matters
Below-grade areas face constant exposure to temperature fluctuations, groundwater, and vapor migration. Without proper insulation, these forces combine to create chronic comfort, efficiency, and safety issues throughout the building.
- Thermal Bridging: Continuous heat loss through uninsulated slabs and foundation walls, increasing overall heating and cooling costs.
- Condensation & Mold Growth: Cold wall surfaces attract moisture vapor, leading to mold formation and material deterioration.
- Occupant Discomfort: Lower floors often feel drafty or damp, reducing comfort for tenants and workers in occupied areas.
- Equipment Damage: Persistent humidity can corrode piping, electrical systems, and sensitive mechanical equipment.
- Energy Inefficiency: HVAC systems must work harder to offset temperature imbalances, resulting in higher utility expenses and shorter equipment lifespan.
Best Materials for Below-Grade Commercial Insulation
Choosing the right insulation is about more than thermal performance. It’s about balancing strength, moisture resistance, and long-term durability in demanding below-grade environments.
| Material Type | R-Value per Inch | Water Resistance | Ideal Use |
|---|---|---|---|
| Extruded Polystyrene (XPS) | 5.0 | Excellent | Foundation walls, under slabs |
| Closed-Cell Spray Foam | 6.0–7.0 | Excellent | Irregular surfaces, rim joists |
| Expanded Polystyrene (EPS) | 3.5–4.2 | Moderate | Economical large-area coverage |
| Polyisocyanurate (Polyiso) | 5.5–6.5 | High | Walls above grade or hybrid applications |
Each material offers a different balance of insulation efficiency and foundation waterproofing capability. Zavza Seal’s engineers evaluate soil conditions, building use, and moisture exposure to recommend the most effective system for your project.
How Thermal Insulation Works Below Grade
Below-grade insulation stabilizes the entire foundation environment by regulating temperature and moisture movement through concrete and soil contact.
Reducing Heat Transfer Through Conduction
Concrete is a strong structural material but a poor thermal insulator. Thermal insulation adds resistance to heat flow, slowing energy loss to the surrounding soil and helping maintain consistent indoor temperatures. This barrier keeps the foundation warmer in winter and cooler in summer, improving year-round efficiency.
Controlling Moisture and Condensation
In humid or coastal climates like Long Island, soil vapor and temperature differences can cause condensation on interior walls. Closed-cell spray foam systems serve as both insulation and vapor barrier, stopping moisture from reaching cold surfaces and eliminating mold-friendly conditions.
Enhancing Structural Durability
Thermal insulation helps protect the materials that make up the building envelope. By maintaining stable temperatures, insulation prevents freeze–thaw stress, sealant degradation, and steel corrosion, extending the lifespan of waterproof membranes and reinforcing systems.
Waterproofing and Insulation: A Dual System
Effective below-grade performance depends on integrating waterproofing and insulation into one cohesive system. Treating them separately leads to premature failure, treating them together ensures decades of protection.
- Waterproof Membranes: Block Groundwater and Hydrostatic Pressure From Penetrating the Foundation.
- Insulation Layers: Keep Wall Surfaces Above Dew Point, Preventing Condensation and Temperature-Driven Expansion or Cracking.
- Air Sealing and Vapor Barriers: Eliminate Humidity Cycling That Damages Finishes and Mechanical Systems.
When properly layered, these components create a continuous thermal and moisture barrier; a fully protected envelope that keeps commercial foundations dry, efficient, and stable.
Energy Savings and ROI
Investing in below-grade insulation delivers measurable returns through lower energy consumption, longer equipment life, and improved occupant comfort.
| Building Type | Estimated Energy Savings | Payback Period | Notes |
|---|---|---|---|
| Office or Retail | 10–15% | 3–5 years | Reduced heating and cooling loads |
| Parking Garages | 8–12% | 4–6 years | Protects pipes and mechanical systems |
| Mixed-Use or Residential Towers | 12–18% | 3–4 years | Enhances comfort and indoor air quality |
Many Long Island and NYC commercial projects may also qualify for energy-efficiency rebates through NYSERDA or Con Edison, helping offset installation costs and accelerate ROI.
Request a Commercial Insulation and Moisture Control Assessment Today!
Installation Process: The Zavza Seal Approach
Every successful insulation project begins with precision planning and expert execution. At Zavza Seal, we combine advanced diagnostics with proven installation techniques to create airtight, moisture-resistant, and thermally stable below-grade environments.
Our process ensures every layer, from concrete surface to finished membrane, works together as a continuous, high-performance system designed for longevity and energy efficiency.
- Site Assessment & Infrared Scan: We map heat loss and cold bridges with IR imaging to pinpoint priorities and quantify savings potential.
- Moisture Mapping & Drainage Review: We trace vapor and liquid water pathways, verify sump/underdrain performance, and define waterproofing scope.
- Surface Preparation: Concrete/CMU is cleaned, repaired, and primed for reliable adhesion and long-term performance.

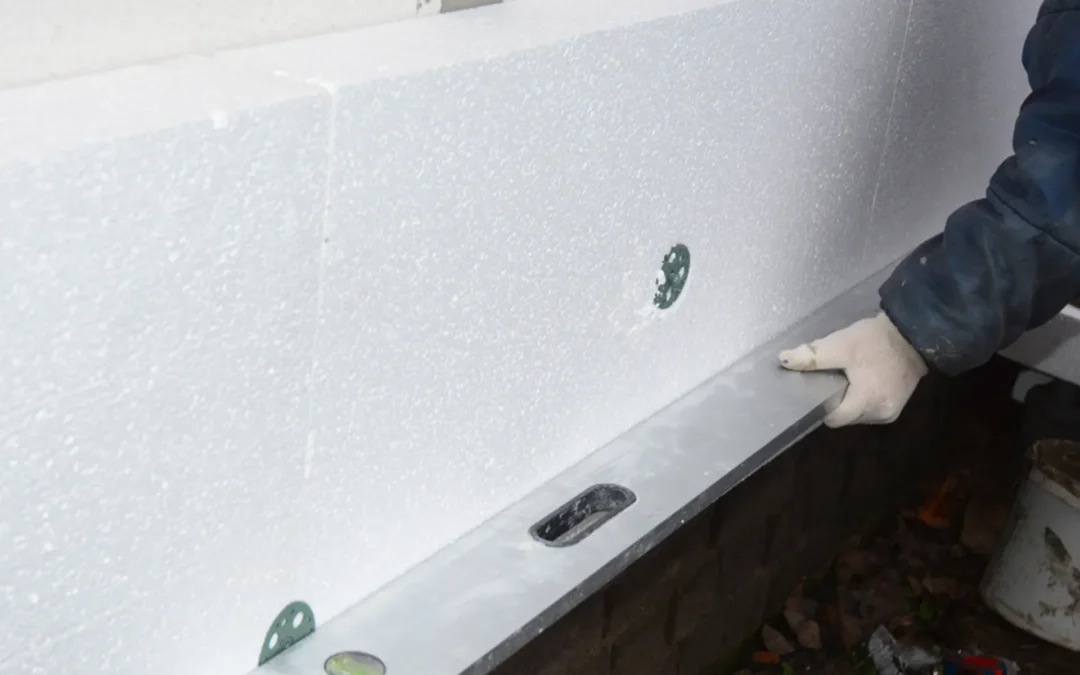

- Insulation Installation: We install continuous XPS boards or closed-cell spray foam to eliminate gaps and thermal bridging at walls, slabs, and rim joists.
- Membrane Sealing: A compatible waterproofing membrane and protection course are applied; penetrations are sealed to maintain continuity.
- Quality Testing: We perform adhesion pulls, verify installed R-values, and conduct moisture readings to confirm outcomes.
Compliance and Standards
Energy performance and building safety start with compliance. Zavza Seal’s insulation and waterproofing systems are engineered to meet or exceed all state, city, and national energy codes, ensuring lasting performance and peace of mind.
Our team stays current with ASHRAE, ASTM, and New York Energy Code standards to deliver solutions that pass inspection and outperform expectations on every commercial project.
- ASHRAE 90.1 and IECC requirements for commercial buildings
- ASTM C578 (rigid foam plastics) and ASTM E2357 (air barrier assemblies) performance benchmarks
- NYC Energy Code and NYStretch Energy Standards for New York projects
Case Study: Exterior Facade Insulation Upgrade in Jamaica, NY
Location: Jamaica, NY
Project Type: Vinyl Siding Insulation – First Floor Facade
Project Size: Approx. 1,000 sq. ft.
Project Overview
A homeowner in Jamaica, NY reached out to Zavza Seal LLC to improve comfort and reduce rising utility bills. The first-floor exterior walls lacked insulation, allowing heat loss in winter and heat gain in summer.
Our Solution
Zavza Seal installed dense-pack cellulose insulation behind the existing vinyl siding for maximum thermal and sound performance. The process included:
- Careful siding removal and access ports for precise insulation injection.
- Eco-friendly cellulose insulation achieving up to R-15 thermal resistance.
- Seamless siding reinstallation for a clean, finished look.
Results & Benefits
- Lower heating and cooling costs year-round.
- Enhanced comfort and soundproofing.
- Improved moisture resistance and indoor air quality.
- Maintained the home’s original exterior appearance.
Why Zavza Seal LLC
Trusted throughout Queens and Long Island, Zavza Seal delivers energy-efficient, sustainable insulation solutions for homes and commercial properties alike. See case study here.
Why Choose Zavza Seal for Commercial Insulation Projects
- Certified Commercial Insulation and Waterproofing Contractors
- Expertise in Below-Grade and Structural Foundation Systems
- Premium, Code-Compliant Materials (Dow, BASF, Carlisle)
- Seamless Integration of Drainage, Air Sealing, Waterproofing, and Insulation
- Transparent Quotes, Energy Modeling, and Long-Term Warranties
Ready to Upgrade Your Home’s Comfort?
Thermal Insulation for Below-Grade Commercial Spaces: Final Thoughts
Below-grade insulation is about more than warmth. It’s about protection, efficiency, and longevity. Integrated thermal and moisture control prevents structural damage, stabilizes indoor temperatures, and enhances property value while cutting operating costs.
Schedule a Free Below-Grade Insulation Assessment With Zavza Seal’s Commercial Team Today.
Frequently Asked Questions About Below-Grade Thermal Insulation
What R-value is best for below-grade commercial walls?
Climate zone and assembly determine targets, but below-grade walls typically aim for R-10 to R-20 continuous; higher R-values improve condensation control and ROI.
Can insulation be installed over existing waterproofing membranes?
Yes. If the membrane is compatible and intact. We verify adhesion and add a protection/drainage course to preserve both layers.
How does insulation prevent condensation and mold?
By keeping interior wall surfaces above the dew point and using closed-cell systems that block vapor drive, thereby removing the moisture mold needs.
Which materials perform best in high-moisture soils?
XPS and closed-cell spray foam deliver the best combination of R-value retention and water resistance below grade.
How long does below-grade insulation last?
Properly installed systems routinely last 30+ years, especially when paired with compatible waterproofing and maintained drainage.
