It’s easy to think of concrete and steel as the true load-bearers, but long before a structure rises above ground, the foundations are really the first ones in the mix. That battle revolves around vertical stress the downward pressure soils experience from the structure itself, the people and furniture inside, and even the soil above.

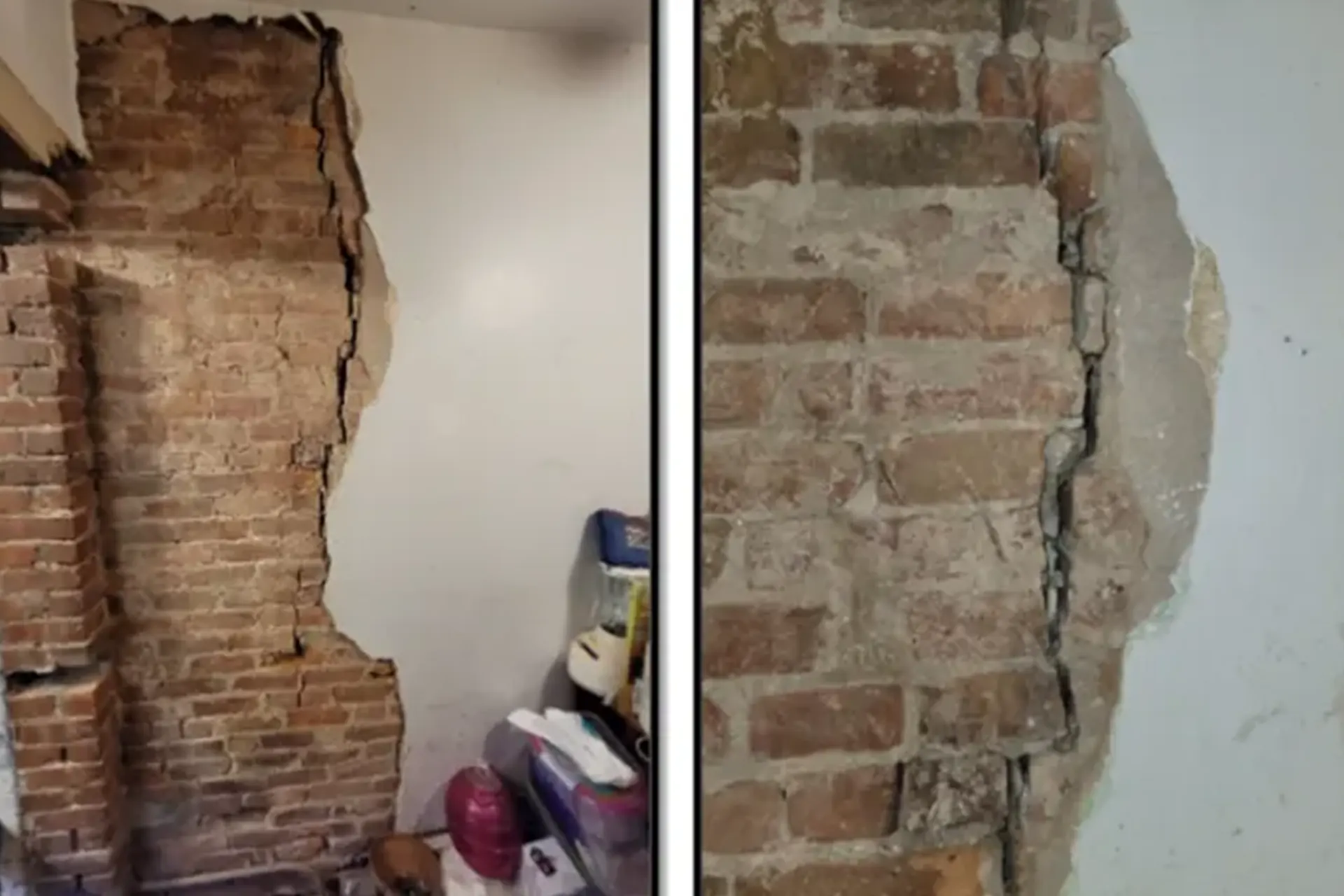

When vertical stress exceeds a soil’s ability to resist, bad things happen. Foundations settle. Floors slope and sag. Walls bow and buckle. And in places like Long Island, Queens, or Brooklyn, where clay-heavy soils and high water tables add complexity, ignoring these pressures can cost homeowners tens of thousands in repairs.
In this guide, we’ll break down what vertical stress is, how engineers calculate it, and why managing it is essential for long-term foundation stability. Whether you’re repairing an existing structure or planning a new build, understanding vertical stress means building smarter and safer.
Before We Build, We Make Sure the Ground Can Take the Hit.
What Effective Vertical Stress Means and Why It Rules the Subsurface
When engineers talk about vertical stress, they don’t just mean the total weight pushing down. The real story lies in effective vertical stress; the portion of that weight actually carried by the soil grains themselves.
Here’s how it breaks down:
- Total vertical stress is the combined weight of soil solids + water in the pores + any structures above.
- Pore water pressure pushes back and carries part of the load.
- Effective stress = total stress − pore water pressure.
And that last number of effective stress is what really matters. It’s the force squeezing soil grains together, giving the soil its strength, stiffness, and ability to resist settlement.
If pore water pressure goes up (like when the water table is high or rises suddenly), effective stress drops. The soil becomes weaker and more compressible, even if the total weight above it hasn’t changed.
Why Vertical Stress Matters in Foundation Repair
For foundation repair, understanding vertical stress isn’t academic; it’s the difference between long-lasting stability and recurring damage.
Here’s How It Guides Real-World Work:
- Predicting Settlement: Calculating vertical stress tells us if the soil will compress too much under new slabs, footings, or loads.
- Pier Design: We choose pier depths where effective stress is strong enough to transfer the structure’s weight safely.
- Slab-on-Fill Failures: When the water table drops or rises, soils can collapse or lose support, creating voids that crack slabs.
- Code Compliance: NYC/NYS building codes require bearing capacity checks and those are based on effective stress values.
In Short: You can’t fix what you don’t measure. Skipping stress calculations means gambling with a building’s future and the repair budget.
How Engineers Calculate Vertical and Effective Stress
To design or repair a foundation that actually lasts, our engineers start by running the numbers on how much pressure the soil is under and how much of that pressure the soil can truly carry.
Here’s how it works:
- Basic Vertical Stress Formula: σ=γ×zσ = γ × zσ=γ×z where γγγ is the soil’s unit weight (how heavy each cubic foot or meter is) and zzz is the depth below ground. The deeper you go, the more weight stacks up.
- Accounting for Groundwater: When soil is saturated, water supports part of the load. We calculate pore water pressure (uuu) and subtract it from total stress:
σ′=σ−uσ′ = σ − uσ′=σ−u. This gives the effective stress (σ′σ′σ′), which determines how tightly soil grains are pressed together. - Layered Soil Corrections: On real sites, soils change every few feet — sand over clay, silt lenses, fill material. We break the profile into layers, calculating the stress through each one to see where it builds or drops.
- Load Distribution Models: For concentrated loads like column footings, we use Boussinesq or Westergaard equations to map how stress spreads out in a bulb shape beneath the load. This shows how far down the load will influence the soil.
Concrete Slab Repair and Waterproofing in Brooklyn, NY: High-Strength Restoration by Zavza Seal LLC
Location: Brooklyn, Kings County
Type: Residential
Category: Concrete Repair, Waterproofing
The Problem
A residential slab had been coated with acrylic paint, which trapped moisture, peeled, and damaged the underlying concrete. The paint had seeped into cracks and cavities, weakening the surface and increasing the risk of water intrusion.
The Solution
Work Area: 32′ x 14′ painted concrete slab
- Prep & Removal: Removed baseboards and manually scraped and jackhammered painted areas after grinding caused the paint to smear.
- Structural Repairs: Filled cracks and voids with high-PSI waterproofing cement or structural epoxy depending on damage severity.
- Resurfacing: Cleaned thoroughly, then applied a 4,500 PSI polymer-modified concrete resurfacer for a smooth, waterproof finish.
Despite challenges, the project was completed in 3 days and delivered a durable, long-lasting slab. Read case study here.
Get Your Site’s Vertical Stress Profile Tested
Before we repair or build anything, we make sure the ground can actually carry the load. That starts with a complete vertical stress profile of your site, because guessing isn’t an option when thousands of pounds are at stake.
Here’s how our process works:
- Geotechnical Borings: We drill test holes to collect undisturbed soil samples and identify the soil layers, depths, and conditions on your property.
- Unit Weight & Water Table Measurements: Our engineers measure soil densities (γ) and log the seasonal high-water table, which directly affects effective stress values.
- Stress Calculations & Analysis: We run layered stress calculations and, when needed, Boussinesq or Westergaard distribution models to see how your structure’s loads will spread into the ground.
- Stamped Reports for DOB Approvals: You get a professional engineering report, sealed and ready for NYC Department of Buildings submissions or contractor planning.
We provide fast turnaround, full engineer oversight, and complete design-build solutions from the first soil boring to the last pier installed.
