Client Concern

Mr. Suffern, a resident of Greenpoint Ave, Brooklyn, contacted Zavza Seal LLC to address active water intrusion and long-term structural concerns in his basement. The basement featured a combination of corrugated steel, sheetrock, and concrete, with signs of water damage and potential deterioration at the wall-to-ceiling joints and steel-to-concrete transitions.

The homeowner’s primary goals were:

• Long-term waterproofing
• Increased structural integrity
• A professional-grade repair backed by a warranty


---

Initial Site Evaluation

On May 2, 2025, our team conducted a detailed inspection at the property. The basement showed multiple risk points for water seepage and concrete exposure damage, including:

• Corrugated steel sheathing over top wall joints
• Sheetrock-covered wall junctions with signs of moisture
• Open cavities at transitions between steel framing and concrete


The proposed solution had to be robust enough to meet both structural and moisture protection needs—and qualify for Zavza Seal’s extended 40-year warranty.

Scope of Work

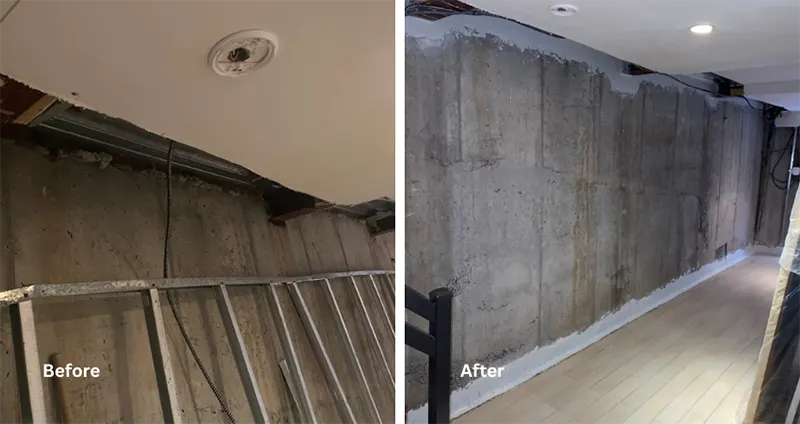

Subject Area A – Corrugated Steel Wall/Ceiling Joint (20 Linear Feet)

• Removed top framing plate and a 6″ strip of galvanized corrugated steel sheathing
• Ground surface using diamond blades to expose clean concrete
• Applied a triple-layered waterproofing system:

  • 6,000 PSI Portland cement base coat
  • 3,800 PSI waterproofing mortar
  • 7,000 PSI waterproofing cement (two coats)

• Reinforced the area with 4.5 oz fiberglass mesh between cement layers for added tensile strength


Subject Area B – Sheetrock-Covered Wall/Ceiling Joint (7 Linear Feet)

• Removed top framing plate and all sheetrock covering the joint
• Prepared bare concrete through grinding and surface cleaning
• Installed the same layered waterproofing system as Area A
• Reinforced with fibermesh to ensure durability and performance
• Resulted in enhanced structural integrity, enabling a 40-year workmanship/material warranty


Subject Area C – Penetrations Between Steel and Concrete

• Sealed visible cavities using hydraulic cement mix
• Drilled around cavity perimeters with diamond bits
• Injected epoxy and urethane foams to boost structural PSI and achieve hermetic, long-term waterproofing


Warranty & Assurance

All work is covered by a 40-Year Workmanship and Material Warranty—limited strictly to the treated areas. This ensures the homeowner receives peace of mind knowing their basement walls are reinforced and sealed against future water damage or material failure.

Basement Foundation Waterproofing – Built to Last

This project showcases Zavza Seal LLC’s expert-level approach to basement foundation repair: from grinding and layered cement waterproofing to structural injections and mesh reinforcement. The result is a dry, secure basement backed by a 40-year guarantee—right in the heart of Greenpoint, Brooklyn.
