The Problem: Failing Structural Columns Threatened Load-Bearing Integrity

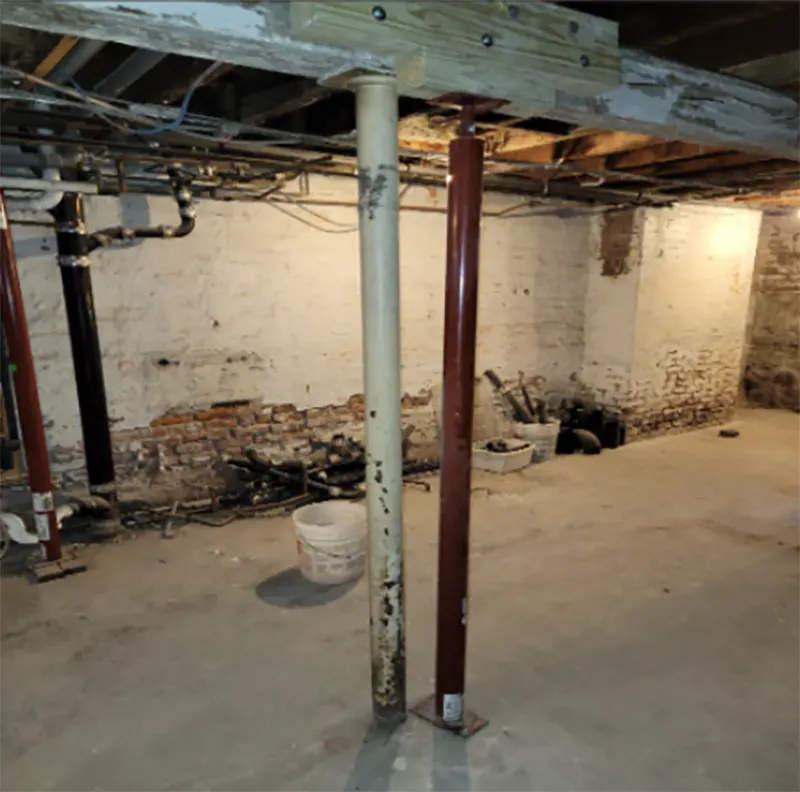

A homeowner in Ridgewood, NY reached out to Zavza Seal LLC after noticing signs of structural stress in their property’s basement. The issue was located at the third column and a temporary Lally column next to it. These columns, which were supporting a significant load, were showing clear signs of failure and instability.
The existing columns were not adequately secured, and the load distribution at the top of the structure was creating excessive pressure on a small area of the wooden beam. Without prompt and professional intervention, this problem could have led to serious structural damage and safety hazards.
The client needed a long-term, durable solution to restore structural integrity, meet load-bearing requirements, and protect the home’s foundation for years to come.
The Solution: Expert Column Replacement and Load Distribution by Zavza Seal
Our structural repair team at Zavza Seal designed and implemented a comprehensive solution tailored to the specific load requirements of the Ridgewood property. Here is how we resolved the problem:
- Removal of Failing Columns
We carefully removed both the failing third column and the temporary Lally column, preparing the area for proper reinforcement. - Installation of New Load-Bearing Columns
After calculating the precise load-bearing requirements for the structure, our engineers determined that a 4-inch diameter concrete-filled steel column was more than sufficient to safely bear the load.
We installed the new steel column, which came factory primed with rust-inhibitive paint to ensure longevity and resistance to corrosion. Both the top and base plates of the column were secured firmly to the newly installed concrete footing below and the wooden beam above.
- Enhanced Load Distribution
To spread the spot pressure exerted by the Lally column above, we installed a 10-inch by 25-inch heavy-duty steel plate at the top of the structure. The plate was attached securely to the wooden beam using high-strength structural epoxy. - Final Welding and Reinforcement
Our skilled welders stick-welded the new steel post to the heavy-duty steel plate to complete the installation, ensuring maximum stability and structural soundness.

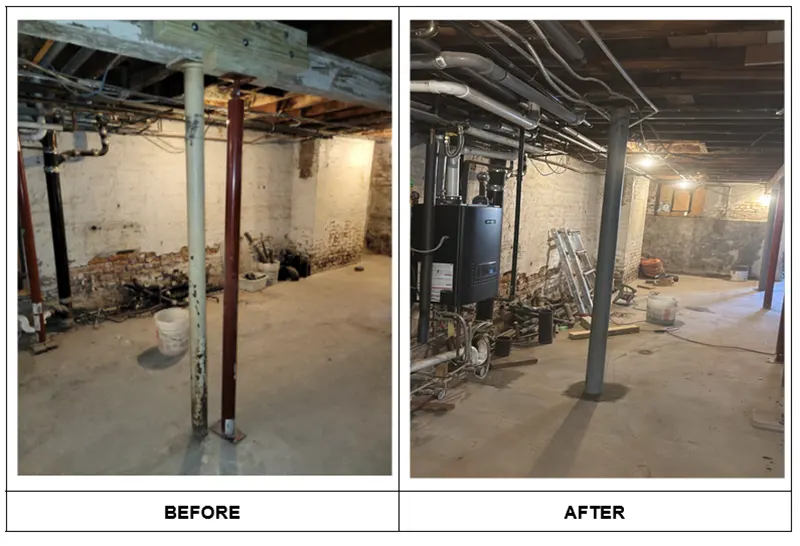

The Result: Strength Restored, Safety Guaranteed
The Ridgewood homeowner can now feel confident in the safety and stability of their home’s structure. The new concrete-filled steel column and reinforced load-distribution system not only meet but exceed the necessary load-bearing requirements. The rust-inhibitive finish and professional welding ensure a long-lasting solution with minimal maintenance needs.
At Zavza Seal, we take pride in delivering expert structural repairs that protect homes and families in Ridgewood and throughout New York.
