The Problem

The homeowner noticed that the building was leaning toward the north side of the property. Structural settling can become a serious problem if it is not addressed early. Over time, it may lead to cracks in walls, uneven floors, and additional stress on the foundation.

During our inspection, our team identified that the north side of the home required foundation stabilization. Before starting the work, we performed courtesy exploratory work and sent a crew member to inspect the roof line between the neighboring buildings. This helped us better understand the condition of the structure and determine whether waterproofing work would also be needed in the future.

Since there was a narrow space between the two buildings, we planned to provide a separate waterproofing recommendation after completing our findings.

The main goal of this project was to stabilize the structure and stop further settlement. It is important to note that this project was not intended to lift or raise the building. In this case, lifting the structure was not recommended and could potentially cause additional structural issues.

Our Solution

After carefully evaluating the property, our team designed a foundation stabilization plan using helical piles.

Our scope of work included:

• Demolishing and removing a 5-foot-wide section of concrete along the affected perimeter.
• Installing seven helical piles with a minimum ultimate capacity of 20 tons each.
• Using galvanized steel brackets to connect the piles to the existing foundation footing.
• Thoroughly compacting the surrounding soil.

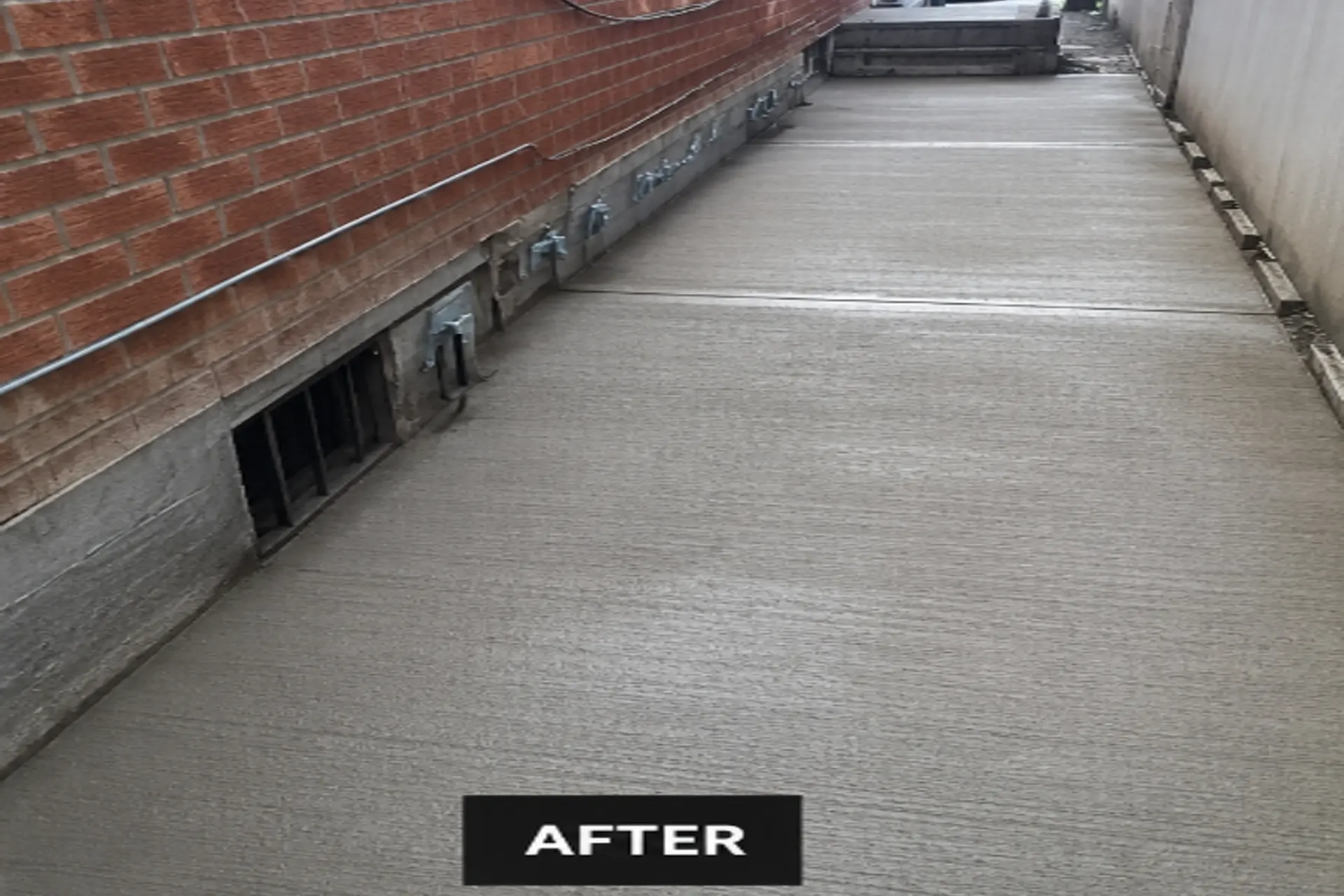

• Installing a new 5-inch-thick reinforced concrete slab over a 3-inch crushed stone base.
• Applying a broom finish to the new concrete surface for a clean and durable finish.

Helical piles are commonly used to stabilize settling foundations because they transfer the weight of the structure to stronger soil layers below the surface. This provides long-term support and helps prevent further movement.

Why We Chose Helical Piles?

Helical piles are one of the most effective solutions for foundation settlement problems because they:

• Provide immediate structural support.
• Minimize excavation and disruption.
• Are suitable for residential and commercial foundation repair projects.
• Offer long-lasting performance when properly installed.

For this Brooklyn property, helical piles were the safest and most practical way to stabilize the foundation without attempting to lift the structure.

Why Foundation Settlement Should Never Be Ignored?

A settling foundation can worsen over time if left untreated. Even minor movement can eventually lead to costly structural repairs. Professional foundation stabilization can help prevent additional damage and preserve the safety of your home.

If you notice signs of settlement such as cracks, sloping floors, or doors and windows that no longer close properly, it is always best to have your foundation inspected by an experienced contractor.

Looking for Foundation Repair in Brooklyn, NY?

At Zavza Seal, we provide professional foundation repair and stabilization solutions throughout Brooklyn and the surrounding areas. Our team carefully evaluates each property and recommends the most effective solution based on the structure’s condition.

Whether your home is settling or showing signs of structural movement, we are here to help.
