Picture a seawall bending under the weight of rushing waves or a basement wall flexing during a storm surge. These are not isolated events, they are real examples of hydrodynamic pressure at work. Unlike static water pressure, which simply pushes outward due to depth, hydrodynamic pressure involves motion, velocity, and impact.
When floodwaters move rapidly, they exert powerful, uneven forces against structures. The faster the water flows, the greater its momentum, and the more destructive the impact becomes. This can cause walls to bow, foundations to crack, and even entire retaining systems to shift or fail.
In New York’s coastal zones, this invisible force shapes how engineers design seawalls, basement enclosures, and underground tanks. Whether from tidal surges, storm runoff, or wave rebound, hydrodynamic pressure determines how long a structure stands firm against the sea.
Get a Free Assessment Today with Zavza Seal: The Crew That Gets it Right the First Time!
What Is Hydrodynamic Pressure?
Hydrodynamic pressure is the pressure created by moving or accelerating water against a surface. It’s a dynamic load, constantly changing as water velocity, direction, and turbulence shift. In contrast, hydrostatic pressure comes from still water. It’s the uniform pressure caused by the weight of the water column, increasing steadily with depth.
Think of it this way:
- Hydrostatic pressure is the weight of a calm lake pressing against a dam.
- Hydrodynamic pressure is the punch of a flood current slamming into that same dam.
Engineers represent hydrodynamic pressure using a simplified kinetic component of fluid motion:
P=12ρv2P = \frac{1}{2} \rho v^2P=21ρv2
Where:
- PPP = hydrodynamic pressure (Pascals)
- ρ\rhoρ = water density (kg/m³)
- vvv = velocity of water flow (m/s)
As velocity doubles, pressure increases fourfold, meaning even moderate surges can impose massive loads on walls and foundations.
Real-World Example: During Hurricane Sandy, many basement walls in coastal New York failed not from water depth, but from the lateral impact of rushing floodwater, illustrating how motion magnifies force.
Need a Structural Load Analysis? Ask Zavza Seal to Model Hydrodynamic Forces for Your Next Seawall, Basement, or Tank Design.
How Hydrodynamic Pressure Acts on Structures
Hydrodynamic pressure doesn’t stay still. It shifts, builds, and pushes as water moves. The faster the water, the stronger the force. Every change in direction, shape, or surface texture alters how that force strikes.
Key Factors That Influence Pressure:
- Velocity and Direction: Faster flow creates higher impact.
- Shape and Angle: Sloped or curved surfaces deflect water differently than flat walls.
- Duration of Exposure: Longer flooding increases cumulative stress.
- Water Depth and Roughness: Deeper or rougher water surfaces generate greater turbulence.
Real-World Examples:
- Basement walls flexing under storm runoff
- Seawalls taking repeated wave hits
- Water tanks expanding and contracting during fill cycles
Pro Insight: Even slow-moving water can apply tons of dynamic force, especially when it becomes trapped behind walls or foundations.
Impulsive vs. Convective Hydrodynamic Pressure
Water exerts two types of motion-based forces at once: impulsive and convective.
- Impulsive Pressure: Occurs instantly when water strikes a surface. Think of a wave slamming against a seawall or floodwater hitting a basement window. It’s the sudden shock load from acceleration.
- Convective Pressure: Builds slowly as water oscillates or sloshes back and forth. It’s less violent but continuous, creating rhythmic stress that weakens structures over time.
Both types act together on walls, tanks, piers, and basements during floods or surge events. Ignoring one means miscalculating total force. Design standards such as FEMA P-55 and ASCE 7 require accounting for both components when modeling hydrodynamic loads in coastal or flood-zone structures.
Protect Your Seawall or Foundation from Wave Impact. Schedule a Hydrodynamic Evaluation with Zavza Seal Today.
Hydrodynamic Pressure vs. Seepage Forces
If you read our other blog on seepage force, you may be confused now. What’s the difference between hydrodynamic and seepage force if they both have something to do with moving water?
Easy. So, here it is…
Both forces involve water movement, but they act in completely different ways. Hydrodynamic pressure attacks from the outside, while seepage forces work from within the soil, undermining the ground beneath a structure.
| Aspect | Hydrodynamic Force | Seepage Force |
|---|---|---|
| Definition | Force from moving water against a surface (seawalls, tanks, piers) | Force from water moving through soil pores, weakening stability |
| Medium | Acts on exterior surfaces | Acts within the soil mass |
| Cause | Driven by velocity and pressure variations | Driven by hydraulic gradient (pore pressure difference) |
| Direction | Typically horizontal (drag, lift) or vertical (buoyancy) | Follows underground flow path, may cause uplift or piping |
| Equation | FD=0.5ρU2CDAF_D = 0.5 \rho U^2 C_D AFD=0.5ρU2CDA | Fs=iγwVF_s = i \gamma_w VFs=iγwV or per unit volume fs=iγwf_s = i \gamma_wfs=iγw |
| Variables | ρ\rhoρ = density, UUU = velocity, AAA = area, CDC_DCD = drag coefficient | iii = hydraulic gradient, γw\gamma_wγw = unit weight of water |
| Applications | Seawalls, bridge piers, basements, tanks | Dams, retaining walls, foundations, sheet piles |
| Main Risk | Structural deflection, vibration, scour | Piping, heave, or internal soil instability |
In Simple Terms:
Hydrodynamic pressure hits from the outside, as moving water impacts your structure directly.
Seepage pressure pushes from inside the soil, slowly eroding support from below. Even if a wall looks solid, both forces can act together, one hammering from the outside while the other weakens the ground beneath.
Hydrodynamic Pressure in Flood and Coastal Engineering
In New York and other coastal regions across the U.S., hydrodynamic pressure is one of the most underestimated threats to structures exposed to storm surge and floodwater. When moving water meets resistance, it strikes, accelerates, and redirects, creating complex forces that can compromise walls, foundations, and shore defenses.
During storm surges and river flooding, these dynamic loads can cause:
- Wall Failure: Sudden wall bending or overturning from rapid water flow impacts.
- Footing Failure: Seepage under footings as water penetrates beneath structures, reducing bearing capacity.
- Erosion and Scour: Erosion and scour caused by repeated flow reversals, undermining soil stability.
Local examples highlight the danger. In Massapequa, a seawall collapsed during a nor’easter when engineers failed to account for wave loading. In the Rockaways, a basement wall bowed inward after heavy rains and moving floodwater saturated the surrounding soil. Both cases demonstrate how hydrodynamic forces, if ignored, can turn resilient structures into failure points.
Get a Flood-Resistant Wall Design Engineered for Hydrodynamic Loads.

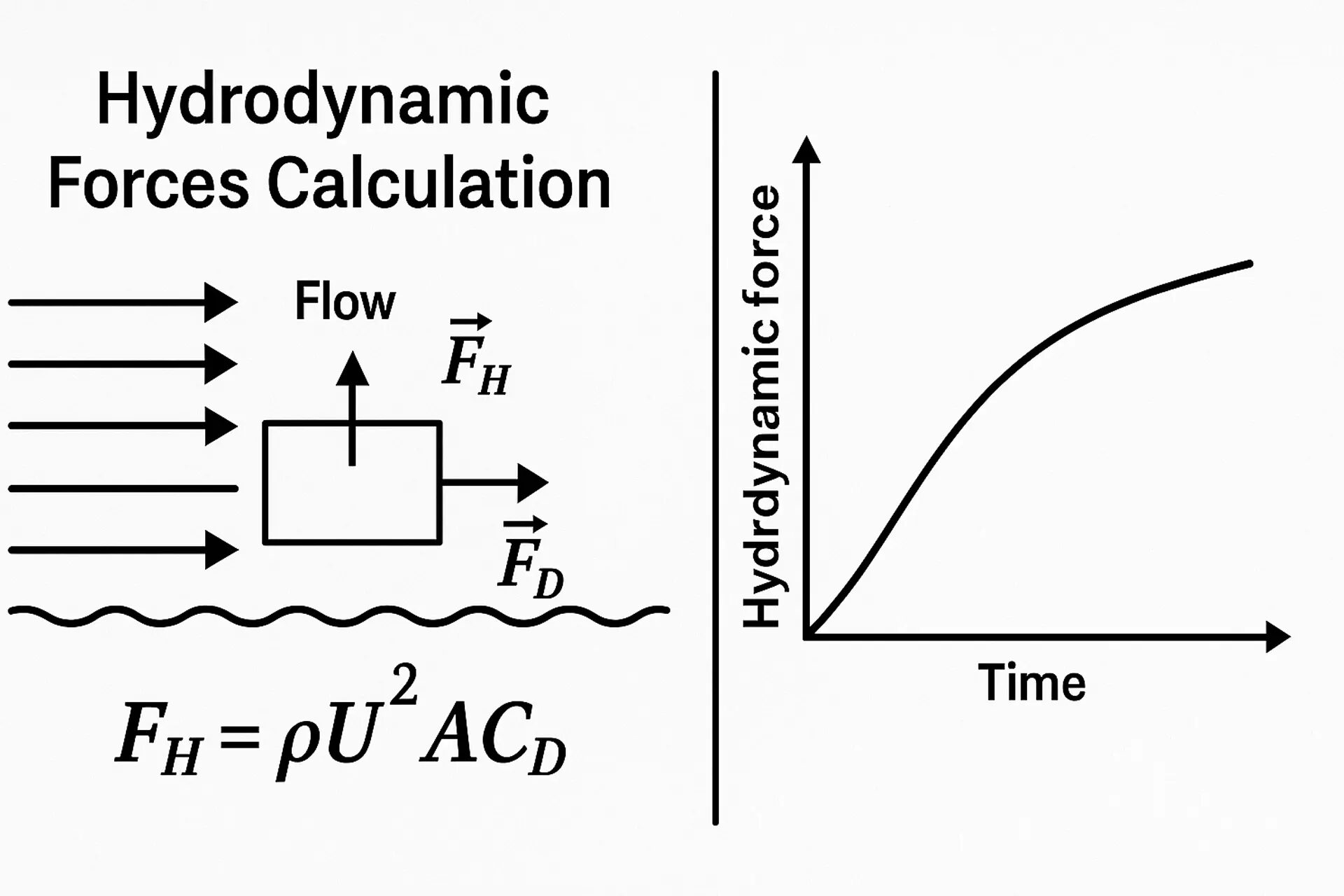

Calculating and Modeling Hydrodynamic Pressure
Engineers use both simplified equations and advanced modeling techniques to estimate hydrodynamic loads. For smaller projects like basements or retaining walls, simplified formulas provide practical approximations. For larger or high-risk designs like seawalls or bridge piers, engineers use Computational Fluid Dynamics (CFD) to simulate the interaction of water velocity, turbulence, and structural geometry.
The basic formula P=12ρv2P = \frac{1}{2} \rho v^2P=21ρv2 estimates pressure from water velocity, but design codes refine this with impulsive and convective components, as described in FEMA P-55 and ASCE 7-16. These account for both the direct hit of a wave (impulsive) and the slower oscillating motion of water mass (convective).
| Wall Geometry | Impulsive Coefficient (Kp) | Convective Coefficient (Kc) | Notes |
|---|---|---|---|
| Flat vertical wall | 1.5 | 0.3 | Common for basements and tanks |
| Curved seawall | 2.0 | 0.4 | Amplifies reflection and turbulence |
| Sloped revetment (30°) | 1.0 | 0.2 | Reduces direct impact load |
| Perforated barrier | 0.6 | 0.1 | Allows partial pressure relief |
Pro Tip: Hydrodynamic forces scale exponentially with water velocity, doubling flow speed quadruples pressure. Even minor increases in surge velocity can drastically increase the load your wall or foundation must resist.
Designing Walls to Withstand Hydrodynamic Pressure
To defend against hydrodynamic pressure, structures must combine strength, flexibility, and controlled drainage. Engineering solutions often include:
- Helical Tiebacks and Sheet Piles: Helical tiebacks and sheet piles to resist overturning and provide lateral support.
- Reinforced Concrete or Shotcrete Systems: Reinforced concrete or shotcrete systems with rebar grids to distribute loads evenly.
- Drainage Relief Systems: Drainage release systems to release pore pressure behind walls and prevent blowout.
- Flood Vents and Pressure Equalization Openings: Flood vents and pressure equalization openings that allow water to flow through safely instead of building up destructive force.
A well-designed system doesn’t manage all of these forces correctly with proper testing and design. By allowing controlled flow and pressure relief, hydrodynamic loads are reduced, preserving both structural integrity and service life.
Ask Our Engineers to Model Your Seawall or Foundation for Hydrodynamic Load Safety.

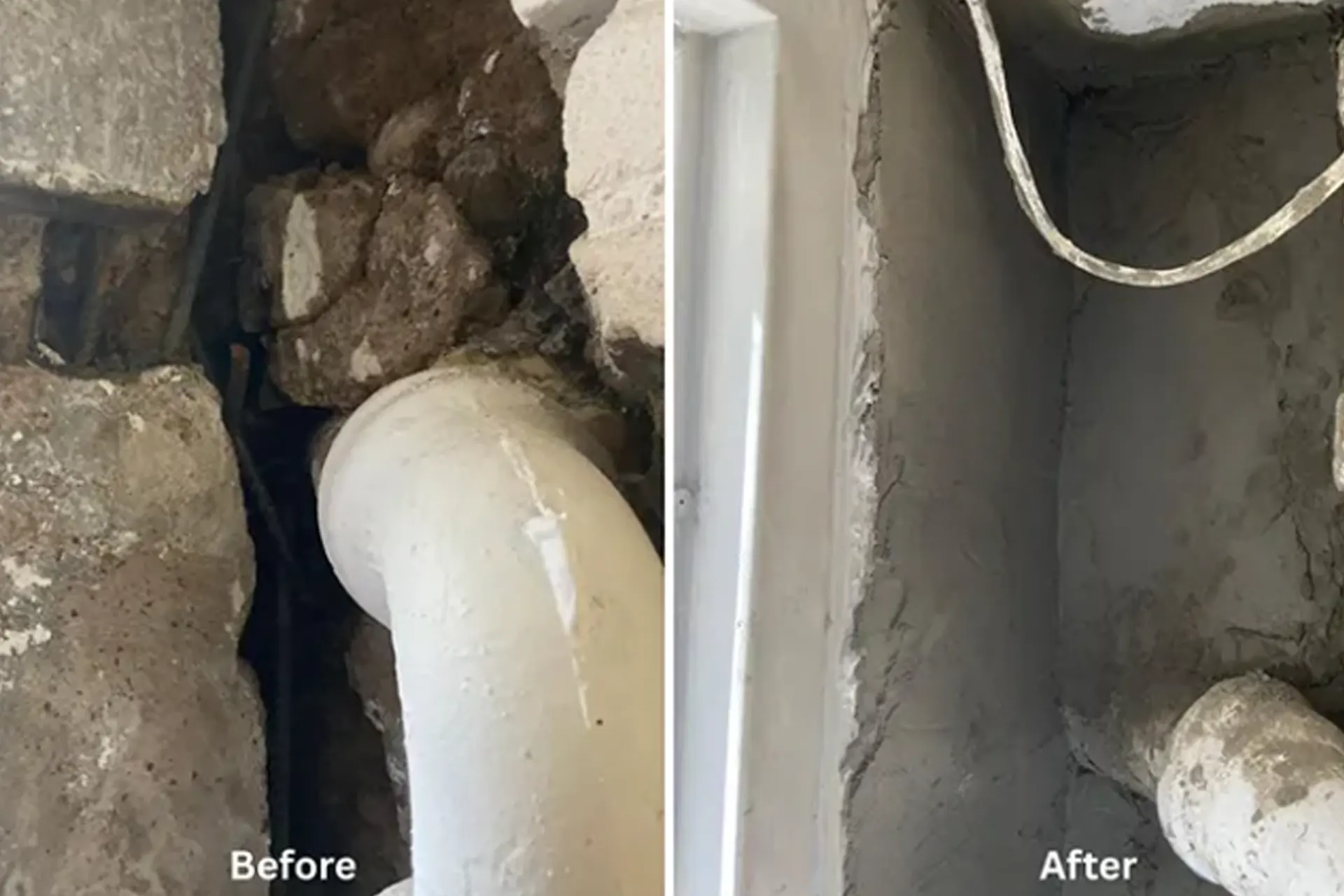

Case Study: Waterproofing Solution on Laurel Road, East Northport, NY
By Zavza Seal LLC – Waterproofing and Structural Repair Specialists
A homeowner in East Northport, NY, contacted Zavza Seal after water began seeping through two thru-wall conduits in their foundation. The intrusion caused persistent dampness and threatened the wall’s stability.
Problem:
Moisture was entering through unsealed wall joints, creating buildup behind the foundation wall and along the footing. Without intervention, this could have led to cracking, mold growth, and long-term structural damage.
Solution:
Our team excavated around the affected corner to expose and clean the thru-wall joint. We applied 3M 5200 marine sealant for a flexible, watertight seal, then coated the wall with a liquid waterproofing membrane to create a continuous moisture barrier. Each step was designed to withstand seasonal expansion, contraction, and hydrostatic pressure.
Result:
The repair successfully stopped the leaks and reinforced the foundation. The homeowner now has a dry, secure basement and peace of mind knowing the issue is permanently resolved.
Need Professional Waterproofing in East Northport? Call (631) 980-1800 or Request a Free Inspection from Zavza Seal Today.
Hydrodynamic Pressure: Final Thoughts
Water in motion behaves like a living force. Ignore it, and it will find your structure’s weakest point. Hydrodynamic pressure is a measurable, destructive force that defines coastal and flood-zone resilience. At Zavza Seal, we design for both static and dynamic loads, ensuring that every seawall, foundation, and waterproofing systems performs under real-world stress.
Design Your Structure to Withstand Water in Motion! Schedule a Hydrodynamic Load Consultation With Zavza Seal Today.
Frequently Asked Questions About Hydrodynamic Pressure:
What’s the difference between hydrostatic and hydrodynamic pressure?
Hydrostatic pressure is caused by the weight of stationary water, increasing proportionally with depth. Hydrodynamic pressure occurs when water is in motion, adding impact, acceleration, and turbulence forces to the static load.
How do engineers calculate hydrodynamic pressure?
A simplified formula is P=12ρv2P = \frac{1}{2} \rho v^2P=21ρv2, where ρ\rhoρ is the density of water and vvv is velocity. Engineers refine this using FEMA P-55, ASCE 7-16, and CFD modeling to account for wave shape, direction, and structure geometry.
Can hydrodynamic pressure cause basement wall failure?
Yes. Rapidly flowing floodwater can create uneven lateral loads that lead to cracking, bowing, or complete collapse, especially in walls without proper reinforcement or drainage relief.
What are impulsive and convective components?
Impulsive loads come from the sudden impact of moving water. Convective loads are slower, oscillating pressures from water sloshing or wave movement. Both must be considered for accurate design.
How do you protect structures from hydrodynamic pressure?
Protection strategies include rebar-reinforced walls, sheet pile systems, drainage channels, and flood vents that equalize internal and external pressure during surges.
How much pressure does moving water apply during a flood?
Even water moving at 5 feet per second can exert hundreds of pounds per square foot on a wall. Doubling flow speed quadruples pressure, emphasizing the importance of hydrodynamic modeling.
Why is hydrodynamic pressure critical in coastal engineering?
In flood zones and coastal regions like Long Island and the Rockaways, hydrodynamic forces are a primary cause of seawall and foundation failure. Designing for moving water is essential for code compliance and longevity.
What materials best resist hydrodynamic pressure?
Durable materials like reinforced concrete, steel sheet piles, marine-grade sealants, and liquid waterproof membranes perform best because they combine flexibility with tensile strength.
How does soil type affect hydrodynamic pressure on foundations?
Sandy or loose soils allow faster water movement and pressure buildup, increasing risk. Clay soils, though less permeable, can retain water longer, creating prolonged lateral loads. Proper soil drainage is essential.
Can residential homes be designed to withstand hydrodynamic pressure?
Yes. With proper drainage, waterproofing membranes, venting systems, and reinforced walls, residential basements and crawl spaces can be engineered to safely withstand hydrodynamic loads during floods.
